Functions:

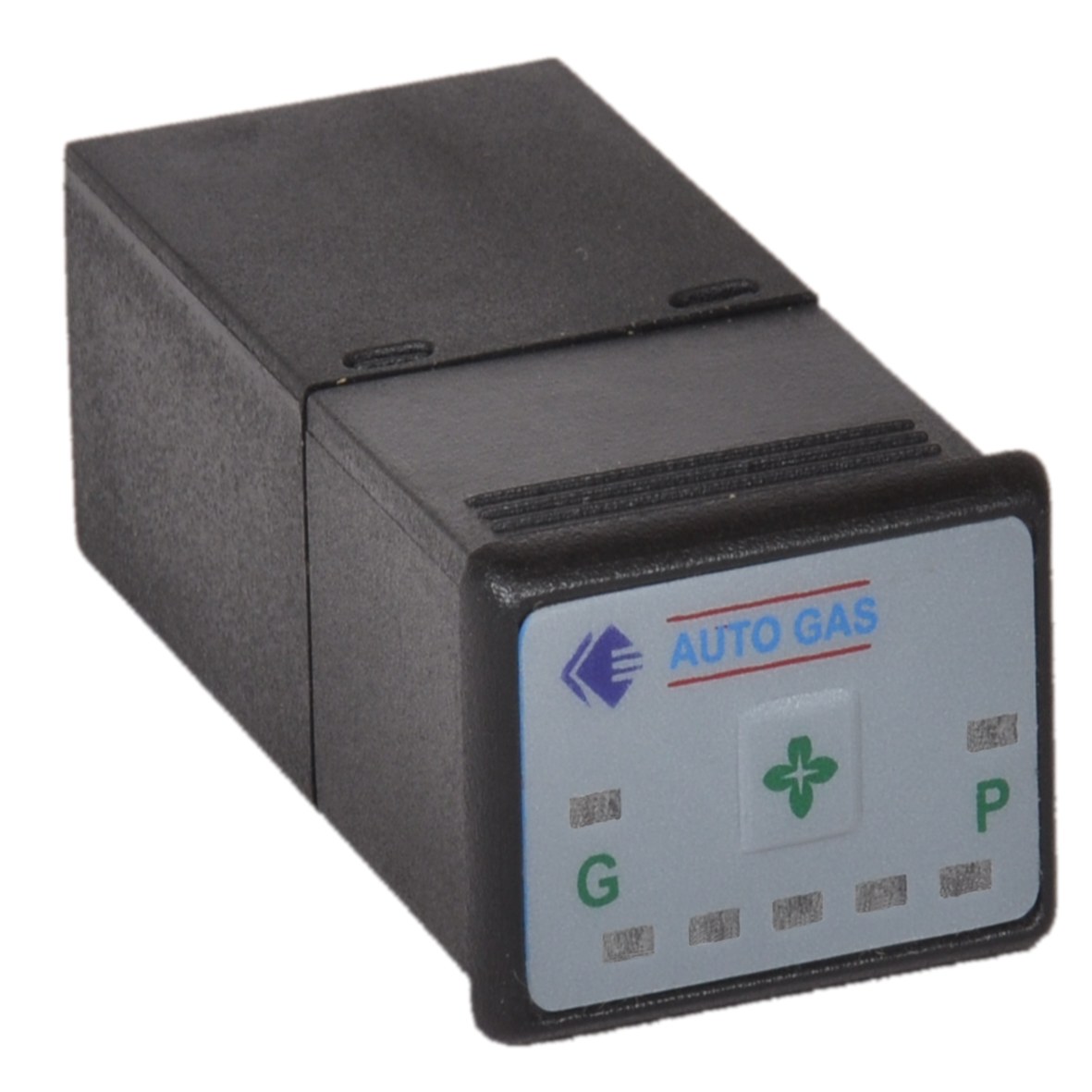

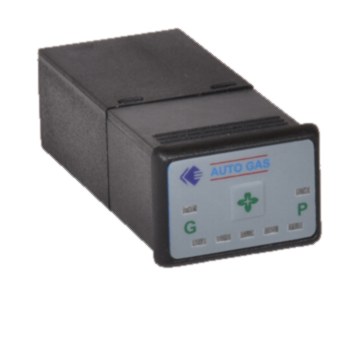

It is electronic control unit for interchange petrol and gas of LPG/CNG injection cars, Switches Start by petrol, when car RPM reaches to the present level, the engine turns automatically to gas, Five-LED gas volume indication, it's workable with many gas volume sensors, specified model is subject to the label of the switch.

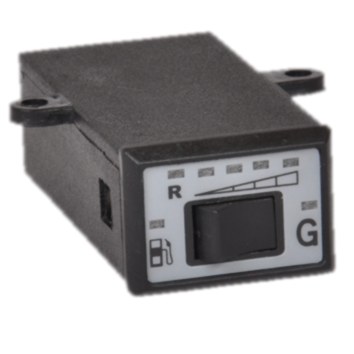

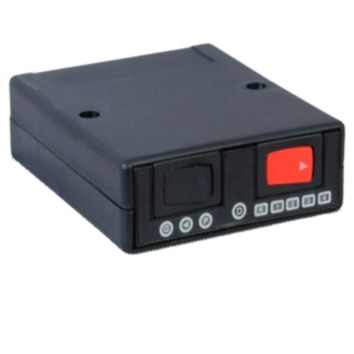

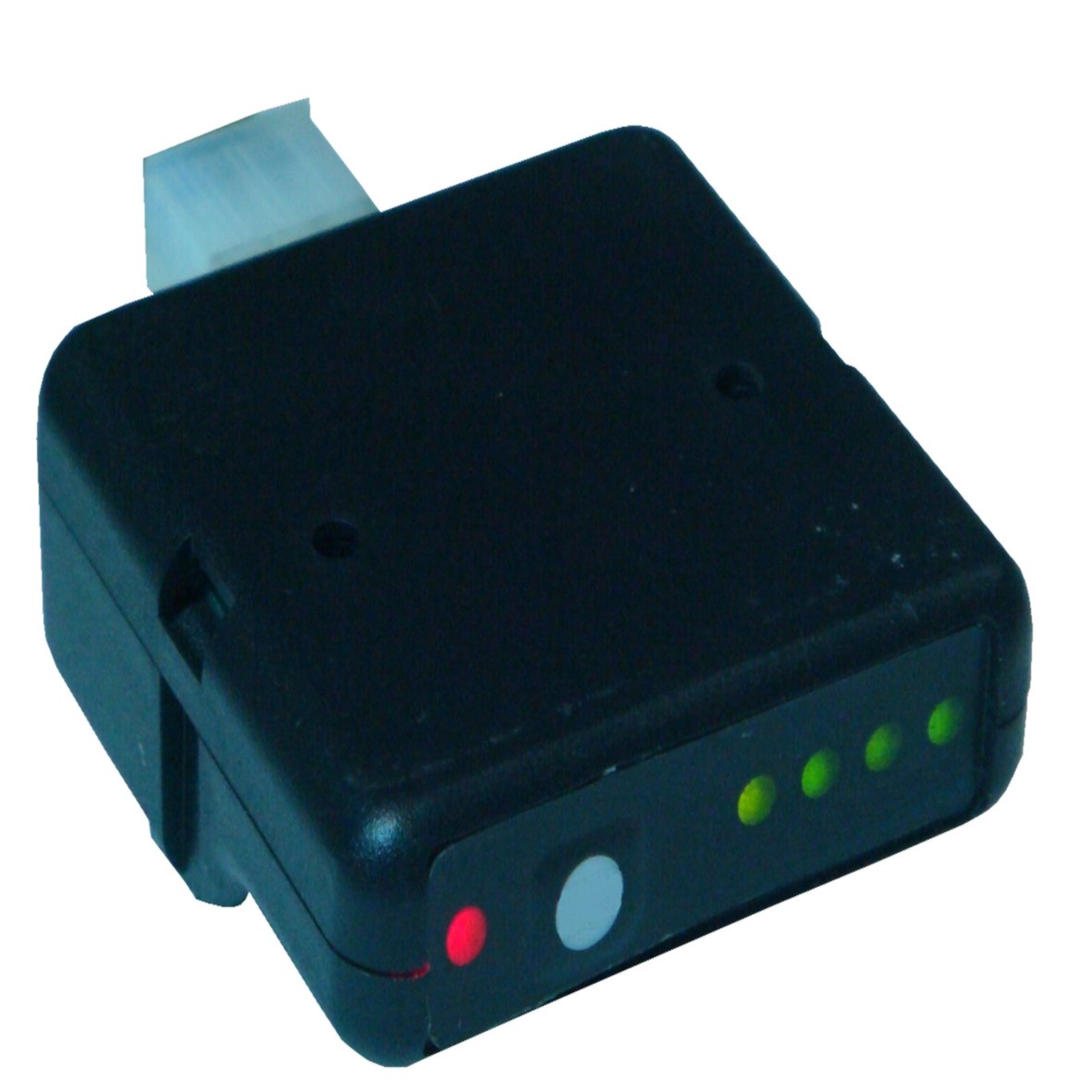

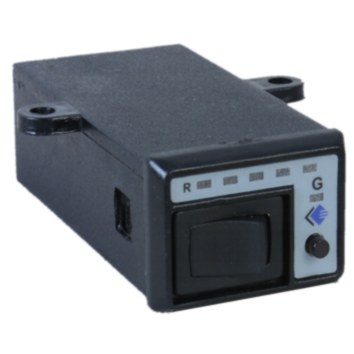

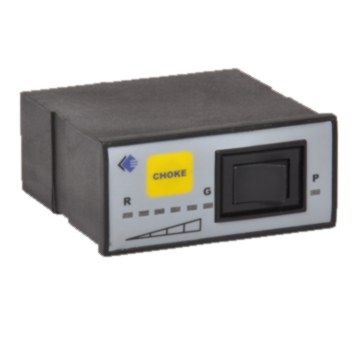

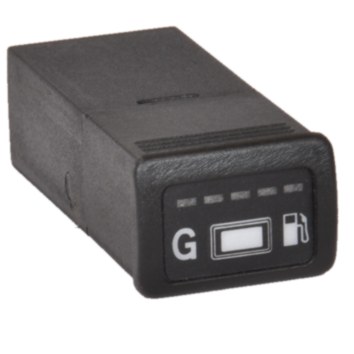

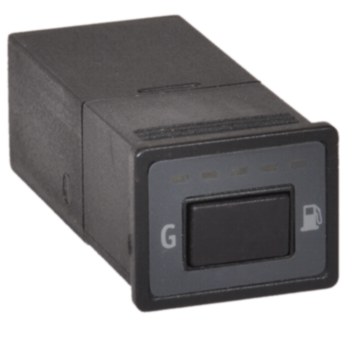

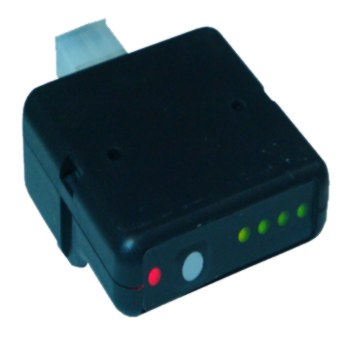

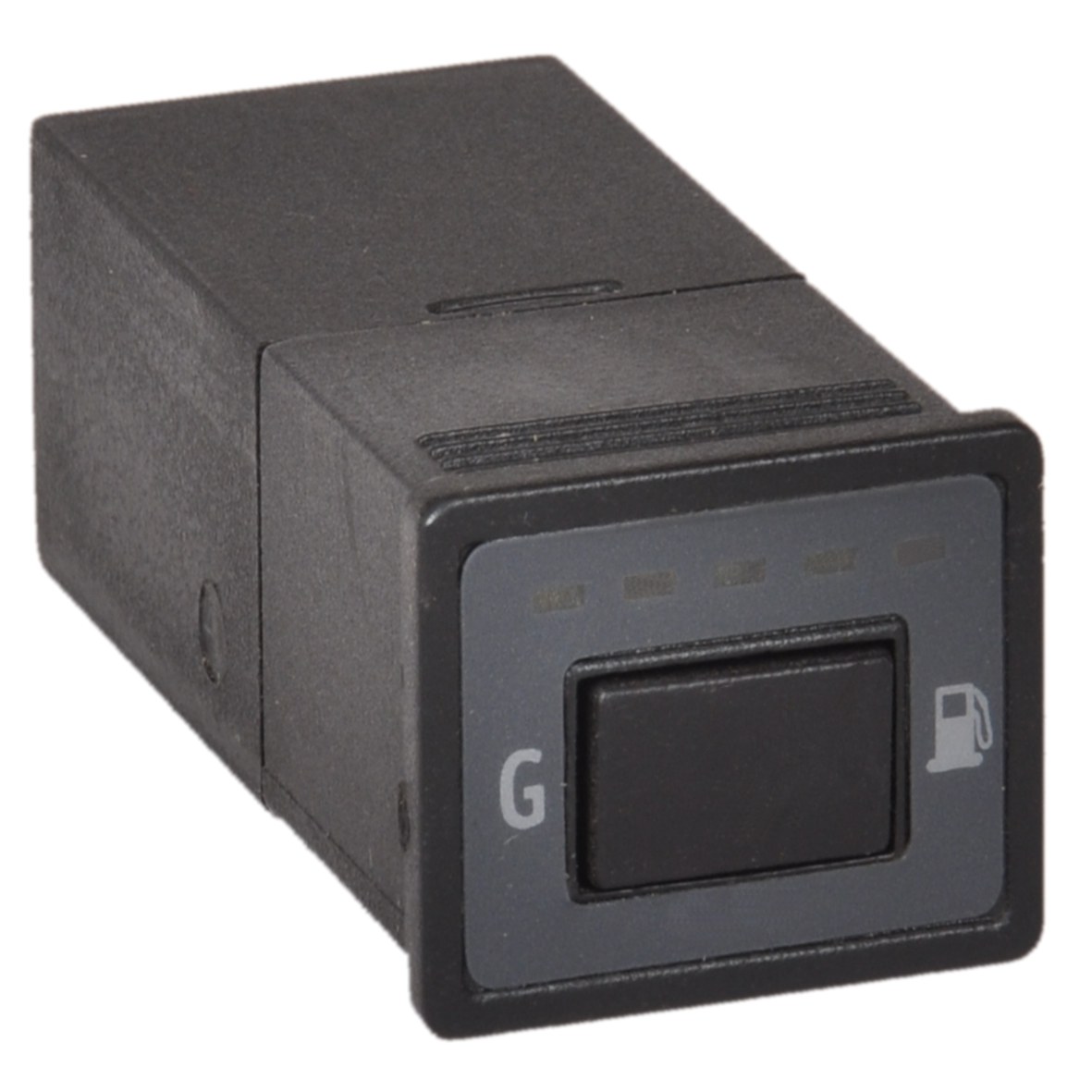

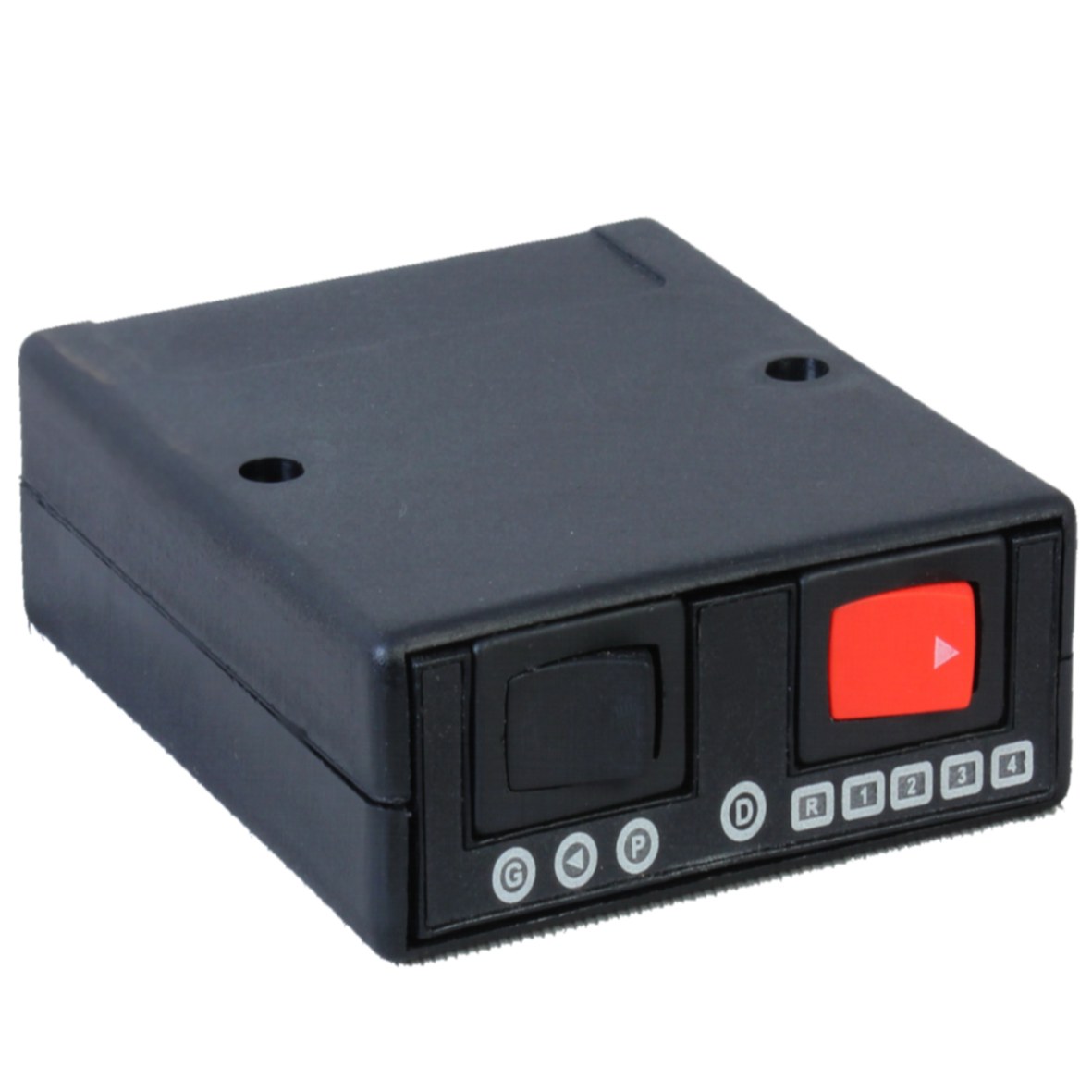

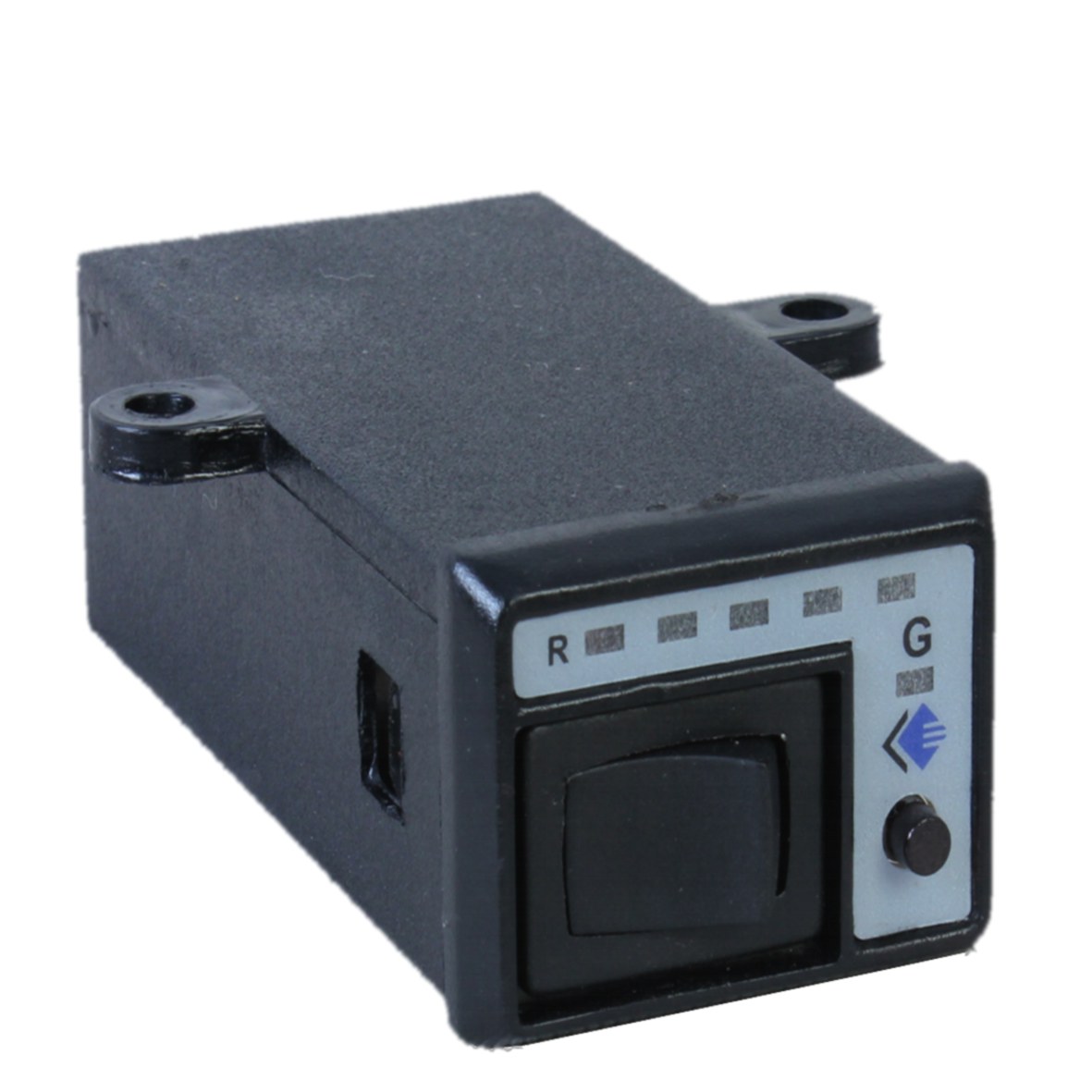

We offer wide range of switches for injection and carburetor vehicles. Which is Compatible with different types of Gas level sensors like AEB, 0÷4700 Ohm, 0 ÷ 90 Ohm, or many nore sensor. The aesthetic look of switches is designed to ensure that they optimally fit into the vehicle’s dashboard.

Main Parameters:
1. Operating voltage: DC 10-14Vdc.
2. Operating current: Less than 80mA if not externally connect to the solenoid valve.
3. Working environment temperature: -25 degress~80degree
4. Life span: >4000h
5. Keep away water, damp and high temperature.
6. Rated Gas output current (BLUE wire) max. 5 A
7. Rated PETROL output current (YELLOW wire) max. 5 A.
8. Quick installation by means of fixing brackets included in the pack
9. Compatible with different types of Gas level sensors
