Functions:

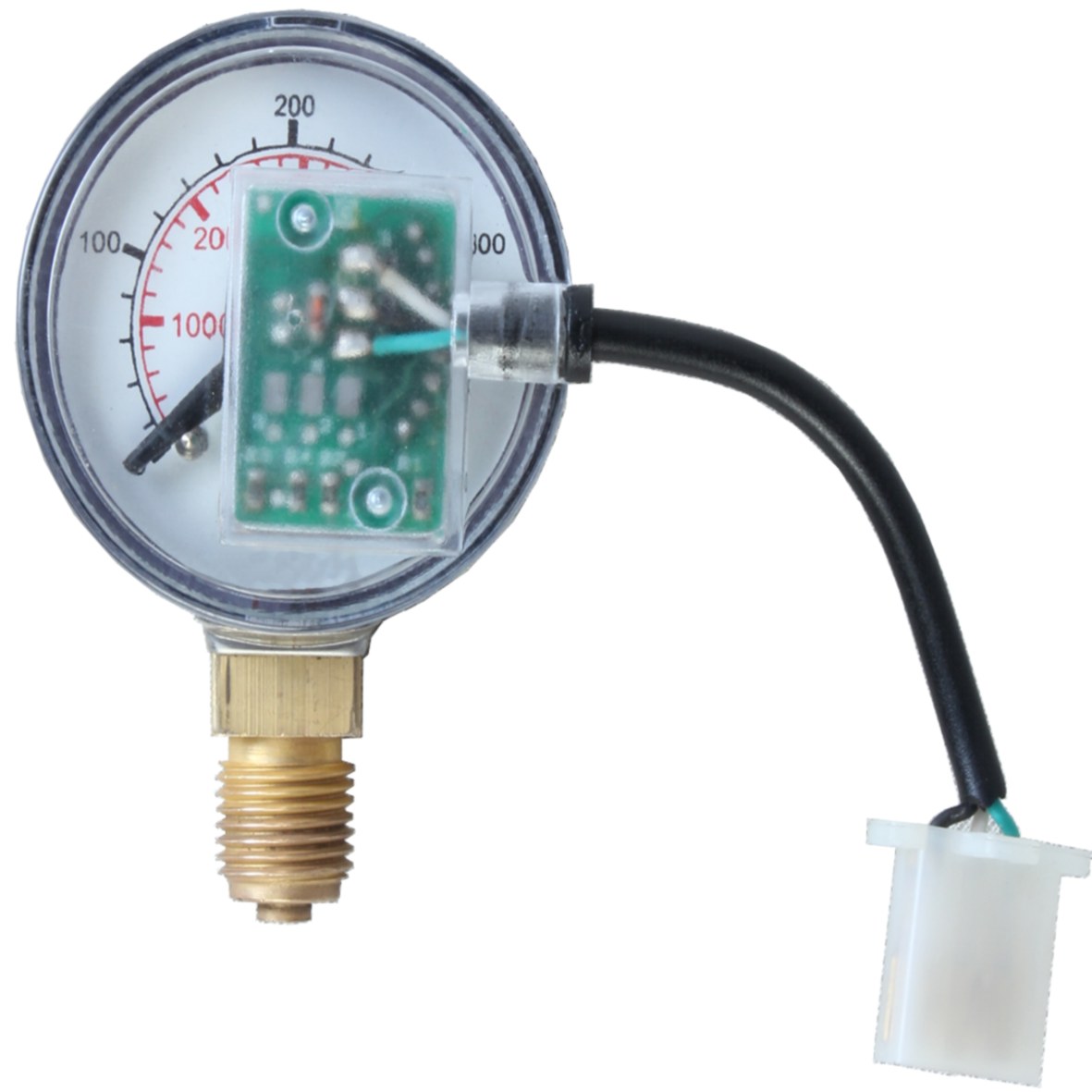

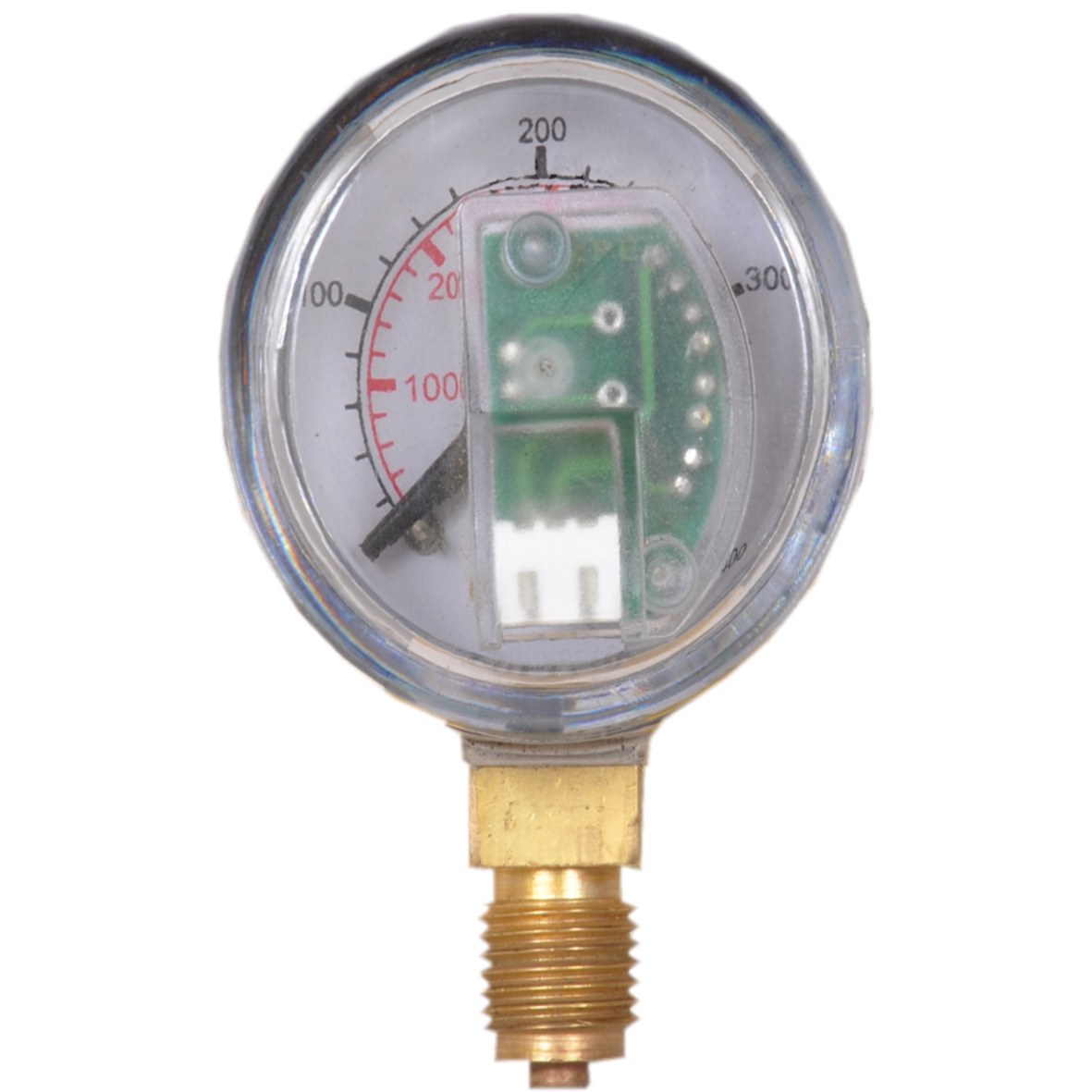

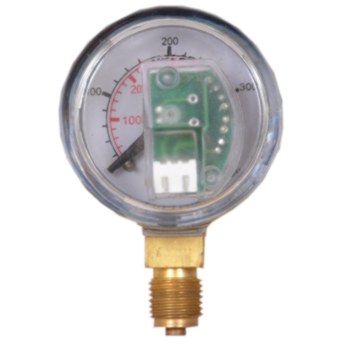

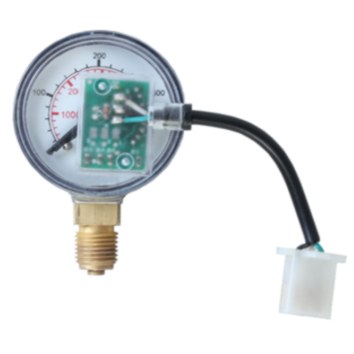

CNG Manometer is a basically pressure transdure and generally give linear analog output according to pressure. Install on to Gas Pipe, through check gas pressure, then send to switch to display the gas quantity of tank. Due to long life of manometer our designed cng manometer is capable to operate in high mechanical vibration and give accurate analog voltage output for switches.

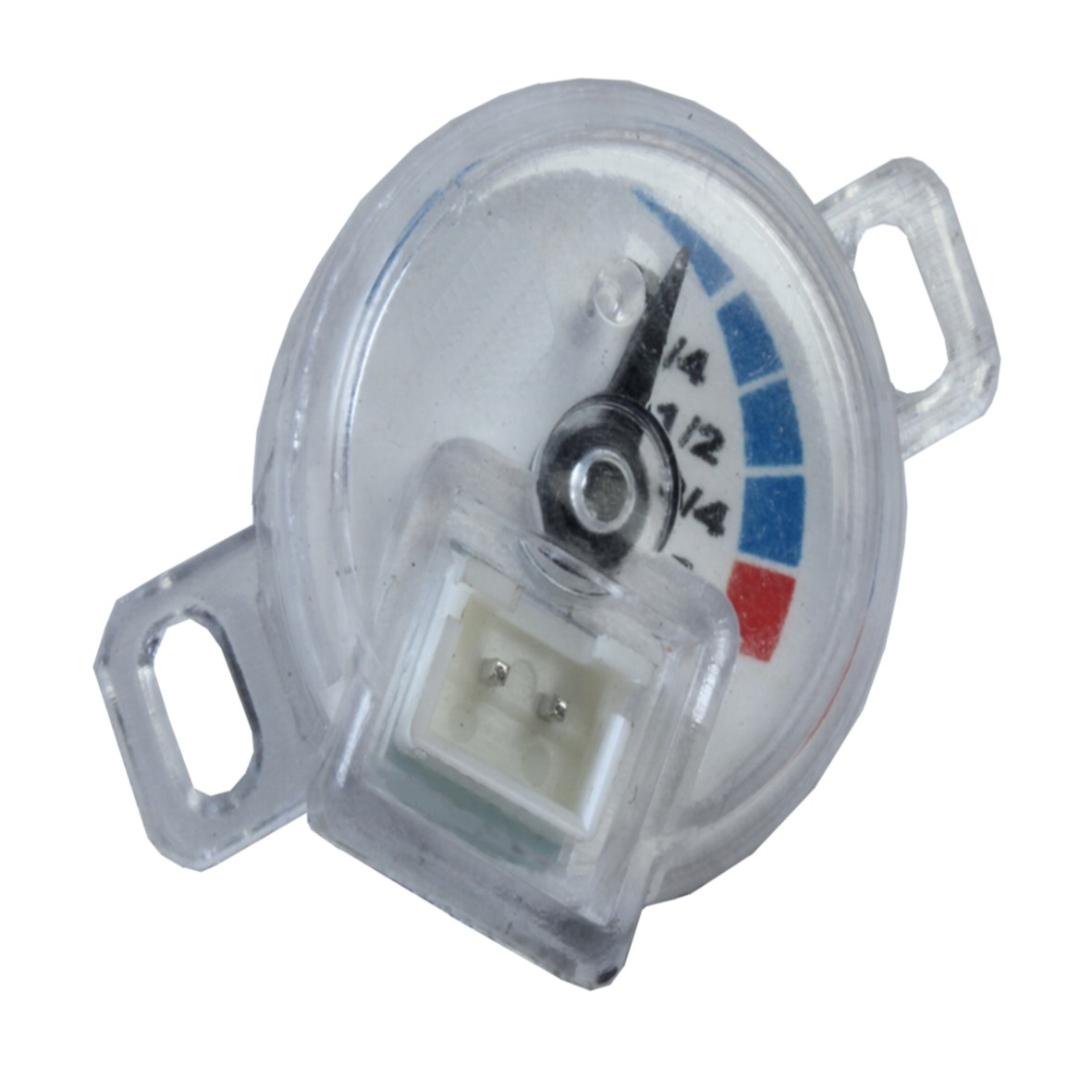

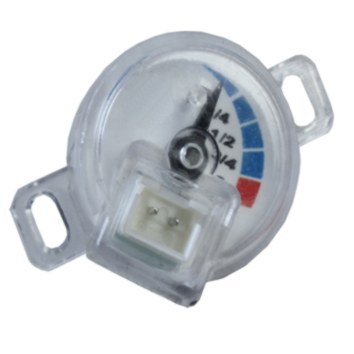

LPG level sensor for Right multivalve with mechanical reading by means of a gauge directly on the multivalve (tank level indication from empty to full is shown in a clockwise direction).It transforms the float position into an electric signal to the switch unit/indicator. We are making huge type of diffrent standard sensors for all types of multivalve with accurate led indication according to flot position.

Main Parameters:
1. Supply voltage 5 Vdc or 12 Vdc
2. Output signal in linear voltage 0.5 – 4.5 V 0r 1.5-11.5v dc
3. Low current consumption, max 30 mA
4. Protection against shorts in output
5. Operating temperature –40°C +120°C
6. Keep away water, damp and high temperature.
